GABLE
-
-
WELDING CABLE PVC INSULATION
KS10-0002Features
High strength tear-resistant jacket
Excellent resistance to abrasion and impact
Superior flexibility, even at cold temperature to -50°C
Flame resistant
Special stranded conductor for added flexibility and easy handling

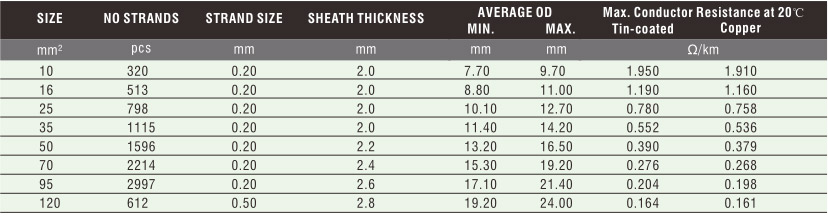

Specification
Applications
For secondary side connection of power sources for
hand or automatic metal-arc welding where required hard usage and heavy duty
portable supply in dry, wet and oil environment. Suitable for connection of motors,
generators, transformers, etc. where flexible connections are required.
Rated voltage
For secondary voltage typical of welding equipment and for fixed protected laying
up to 600 V. Maximum permissible conductor temperature 90°C.
Specification
Annealed bare copper high flexible conductors
Single layer in PVC materials
Double insulation PVC available on special request
ROHS,PAHS,REACH avialble upon request
Separators
Various, such as paper, polyester film, or polyester.
Standard delivery lengths
Up to 35 mm in coils of 100m, 50 to 120 mm in coils of 50 m.
Other lengths available on special request
Longer delivery lengths on drums upon request
